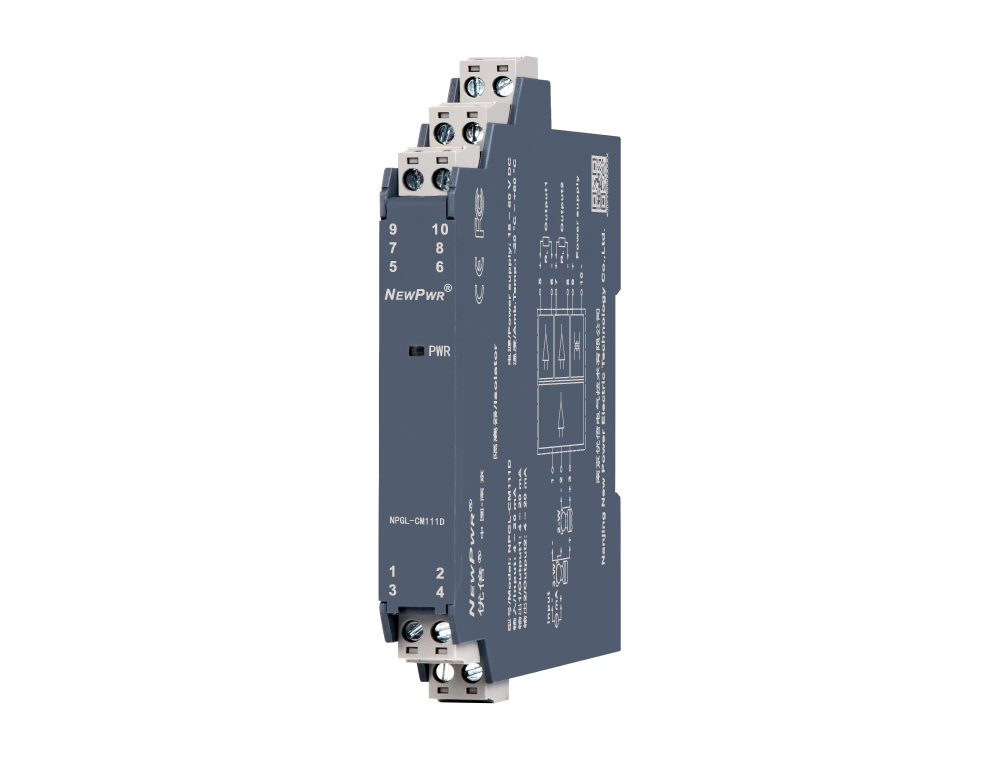

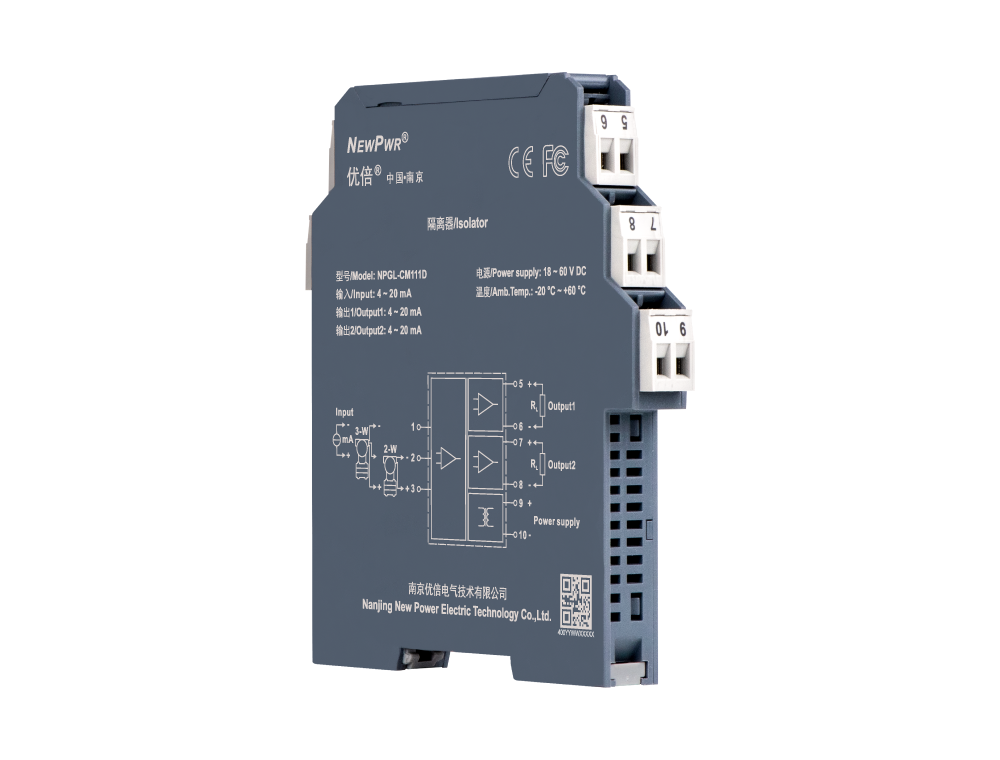

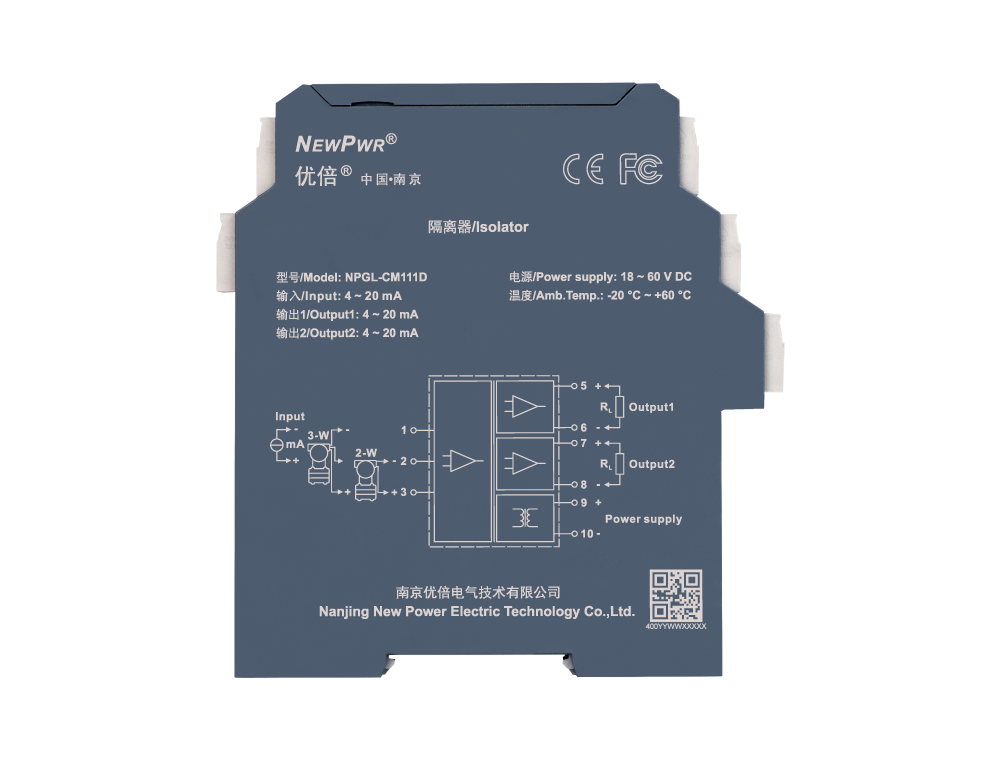

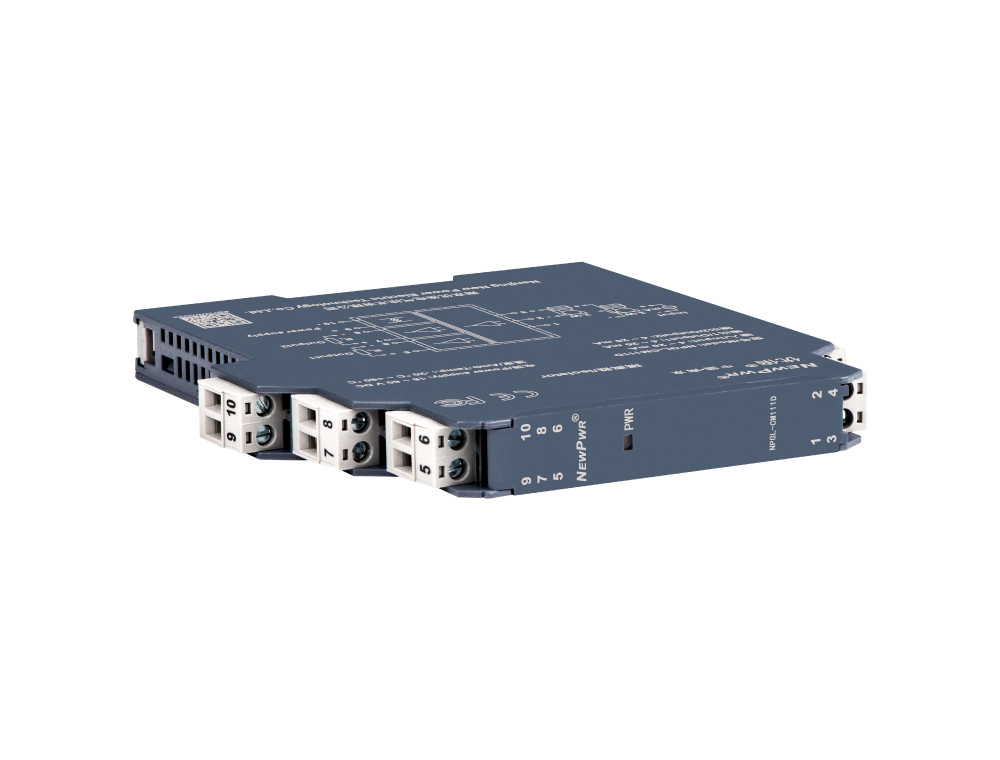

NPGL-CM111D

This isolator detects loop current and converts it to 4~20mA signals, and also provides transmitters with power. It allows transmission of HART communication signals. The input, output, and power supply are galvanically isolated from each other.

Input signal

4～20 mA

Output signal

4～20 mA

Channels

1 input/2 outputs

Power Supply Mode

24VDC terminal power supply

HART

Support

Share

NPGL-CM111D

Product details Technical data Accessory Download

contrast

【Core technology】


【Installation and disposal】

C系列注塑外殼安裝.gif C系列注塑外殼拆卸.gif

Installation Disposal

【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data

Supply

Power supply

18 ~ 60 V DC

Input

Input signal	4 ~ 20mA, HART
Insulation resistance	approx. 50Ω
Available voltage	open-circuit voltage ≤ 26V; voltage: ≥ 22V at 20mA

Output

Output signal	4 ~ 20mA, HART
Load resistance	RL ≤ 550 Ω

Transfer characterisics

Accuracy	0.1%F.S.
Temperature drift	30 ppm/℃

General parameters

Response time	≤ 2 ms
Power dissipation	1.8 W

EMC data

Electromagnetic compatibility	IEC 61326-3-1
Dielectric strength	≥ 1500V AC (Input /Output/Power supply)
Insulation resistance	≥ 100 MΩ (Input /Output/Power supply)

Operating conditions

Operation temperature	-20 ℃ ~ +60 ℃
Storage temperature	-40 ℃ ~ +80 ℃

Mechanical specifications

Connection method	Screw connection
Dimension	12.8mm (W) × 110mm (H) × 117mm (D)
Mounting type	DIN35 mm

Certified data

Product approvals

CE, FCC
